Exhibition modules

Exhibition modules with pneumatic 50 mm stroke

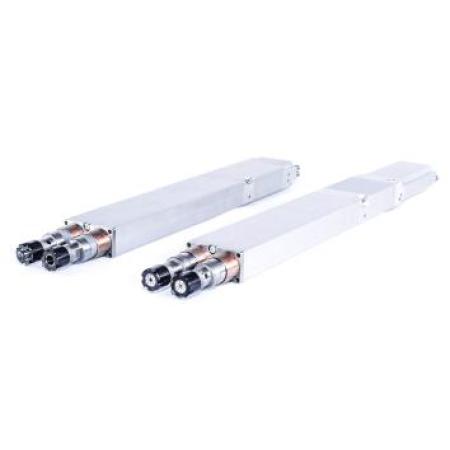

The machining modules of this series have two independently controllable tool spindles in 32mm pitch with 50mm stroke. This allows you to adjust the hole pattern quickly and variably, which is why the adjustment modules are perfect for machining in stationary applications. Furthermore, in addition to the version with external valves, you have the option of choosing one with integrated valve technology, which extremely simplifies the installation effort.
Further views

Product highlights

  1. Submit

    Only the drill that is currently required for the machining task can be fed via the pneumatic feed stroke. Spindles that are not required remain retracted.

  2. Control & Monitor

    Pilot control is performed via external pneumatic valves or via integrated built-in valves. If LCM sensors are installed, the spindle position is monitored and transferred to the control system.

  3. Edit

    The ToolDrives Linear Feed Unit or the Z-axis of the CNC machining center feeds the drilling unit into the material to be machined.

Product images


Further product details can be found in our associated data sheets.
