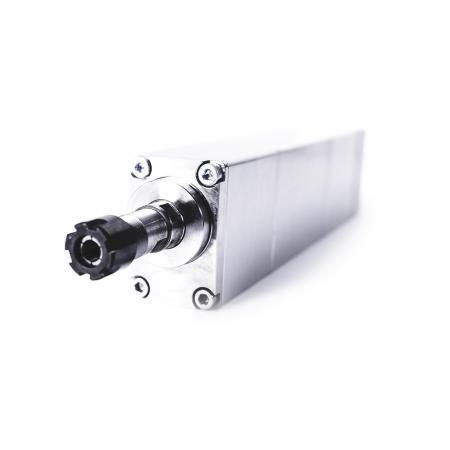

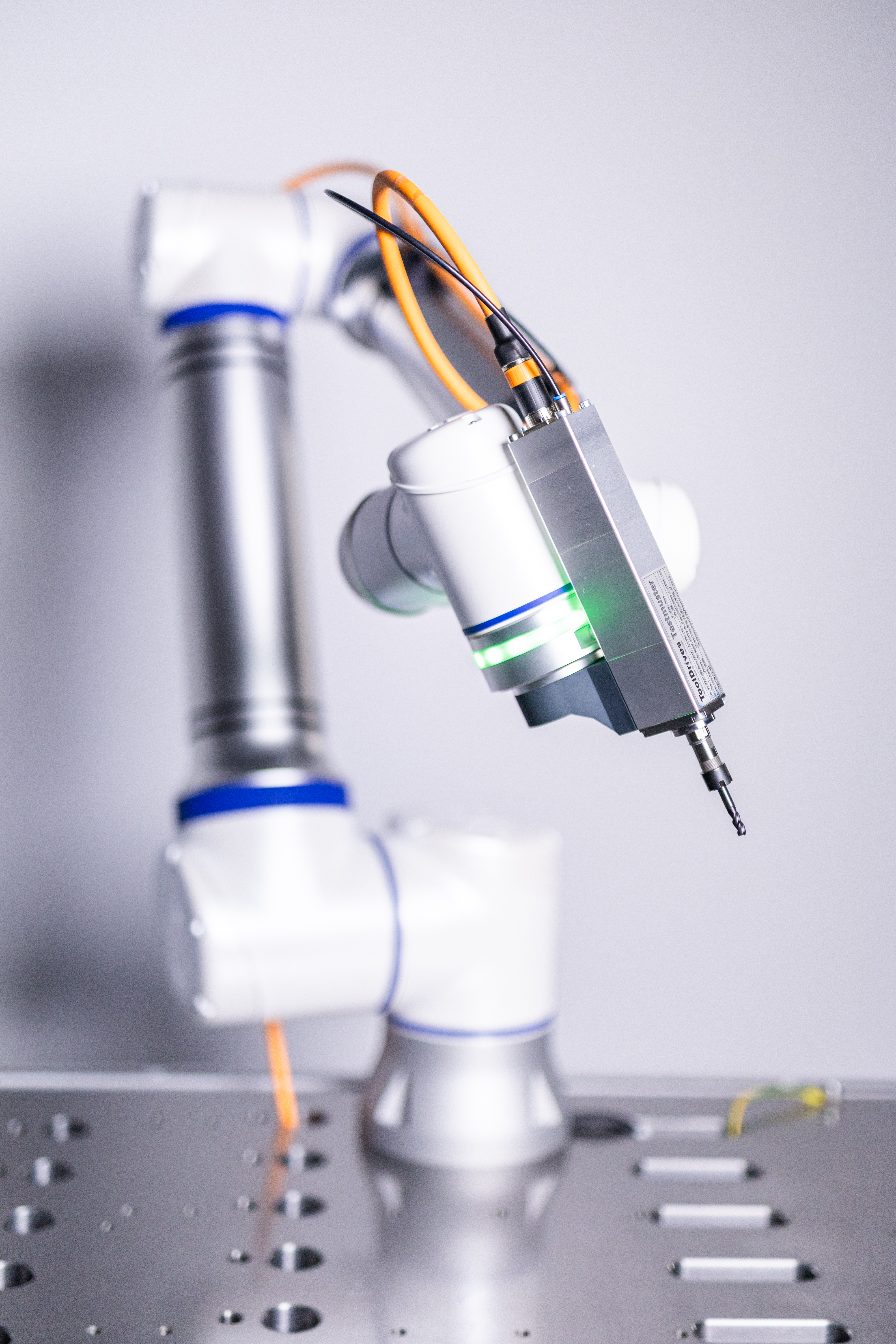

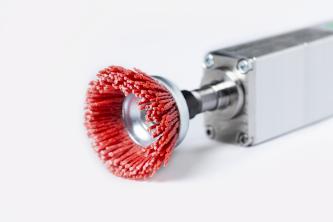

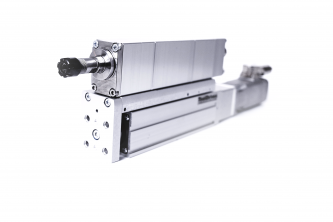

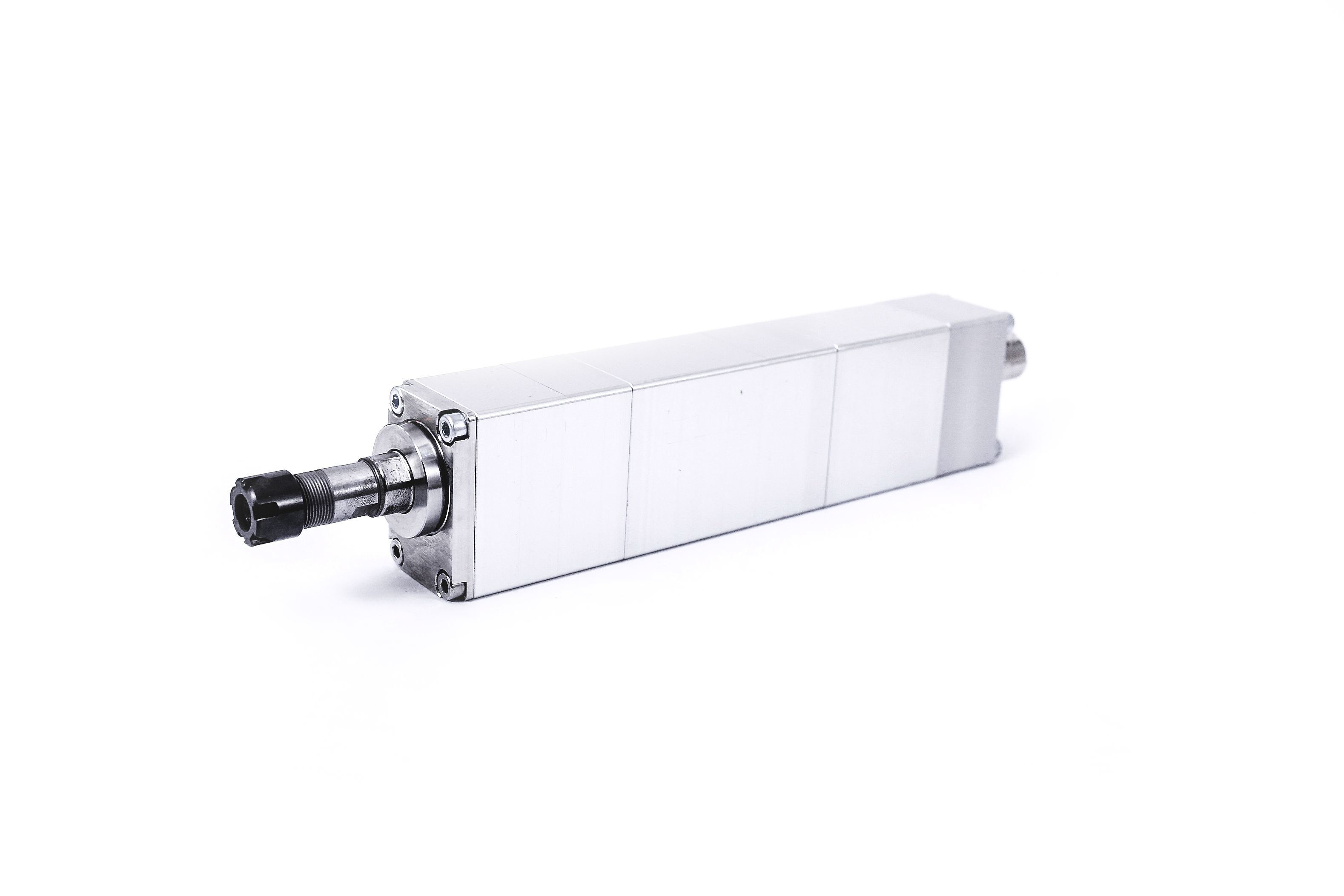

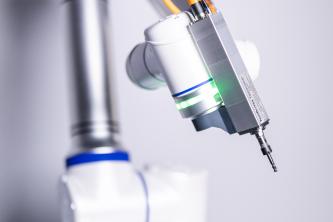

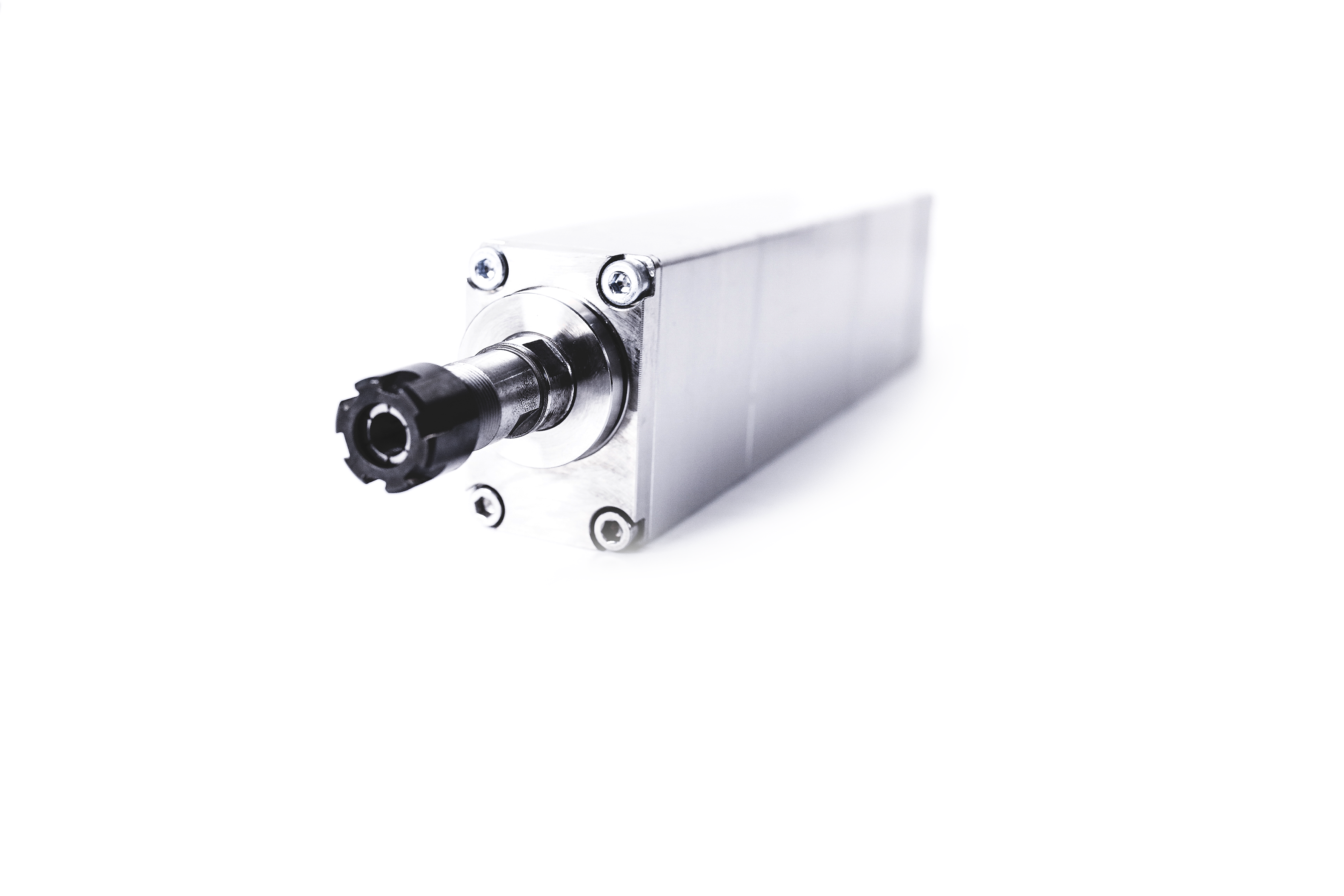

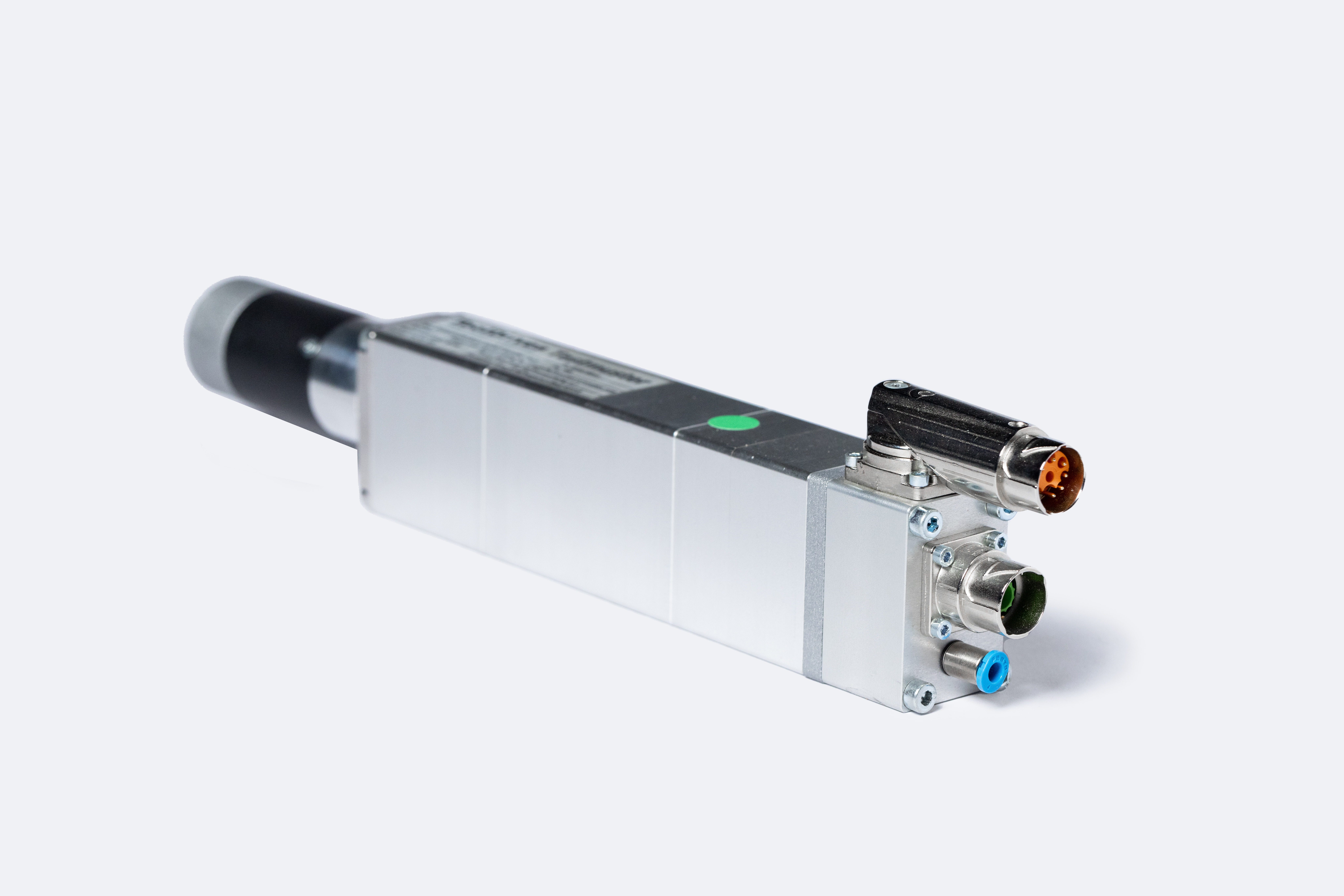

Processing unit
The variants of the Basic Line modules are compatible with each other in accordance with the underlying modular principle. Particularly in the case of changing requirements, you, as the customer, thus always have the flexibility to use exactly the processing module that best meets your needs - and with the same productivity.
Powerful servo motors enable higher speeds, which ultimately result in shorter throughput times.
Due to the compact nature of the modules, a higher acceleration and thus a higher processing speed is possible.
The modular plug-in system offers the necessary flexibility to always adapt the module arrangement to your individual requirements.
| without exhibition | with exhibition | ||||
|---|---|---|---|---|---|
| Module type | BV032-01-000 | BV032-02-000 | BV032-01-050 | BV032-02-050 | |
| Engine type | Three-phase synchronous motor | ||||
| Direction of motor rotation | Left-hand rotation (in view of the direction of tool rotation) | ||||
| Speed range | nmin-1 | 2.000 - 18.000 | |||
| Max. operating speed (depending on the tool holder) |
nmaxmin-1 | High Speed Weldon: 12.000 ER 11: 14.000 |
High Speed Weldon: 12.000 ER 16: 17.000 |
||
| Exhibition | mm | - | 50 | ||
| Valve technology | - | extern or integrated |
|||
| Number of tool spindles | 1 | 2 | 1 | 2 | |
| Weight | kg | 1.3 | 1.9 | extern: 2.4 integrated: 2.7 |
extern: 3.4 integrated: 3.7 |
| Seal air volume | Ql/min | 12.5 | 25 | - | |
| Operating pressure | bar | 0.3 | 7.0 | ||
| Filter class DIN ISO 8573-1 |
µm | 0.01 (class 1) | 5 (class 3) | ||
| Compressed air quality DIN ISO 8573-1 |
free of dirt, oil and water | ||||
| Max. axial force on the motor spindle |
FmaxN | 300 | |||
| max. performance short |
PmaxW | 1.200 | |||
| max. electricity short |
ImaxA | 6 | |||
| max. torque kurzzeitig |
MmaxNcm | 100 | |||
| Terminal resistance | RttΩ | 11,6 | |||
| Terminal inductance | LttmH | 5,1 | |||
| Torque constant | KtNm / A | 0,17 | |||
| Number of pole pairs | p | 3 | |||
| Protection class | IP 54 | ||||
| max. permissible enclosure temperature | °C | +80 | |||
| Ambient temperature | °C | +15 bis +40 | |||
| Relative humidity | rF% | ≤ 85 | |||
| Insert height above | NNm | ≤ 1.000 | |||
Further product details can be found in our associated data sheets.
