Processing unit

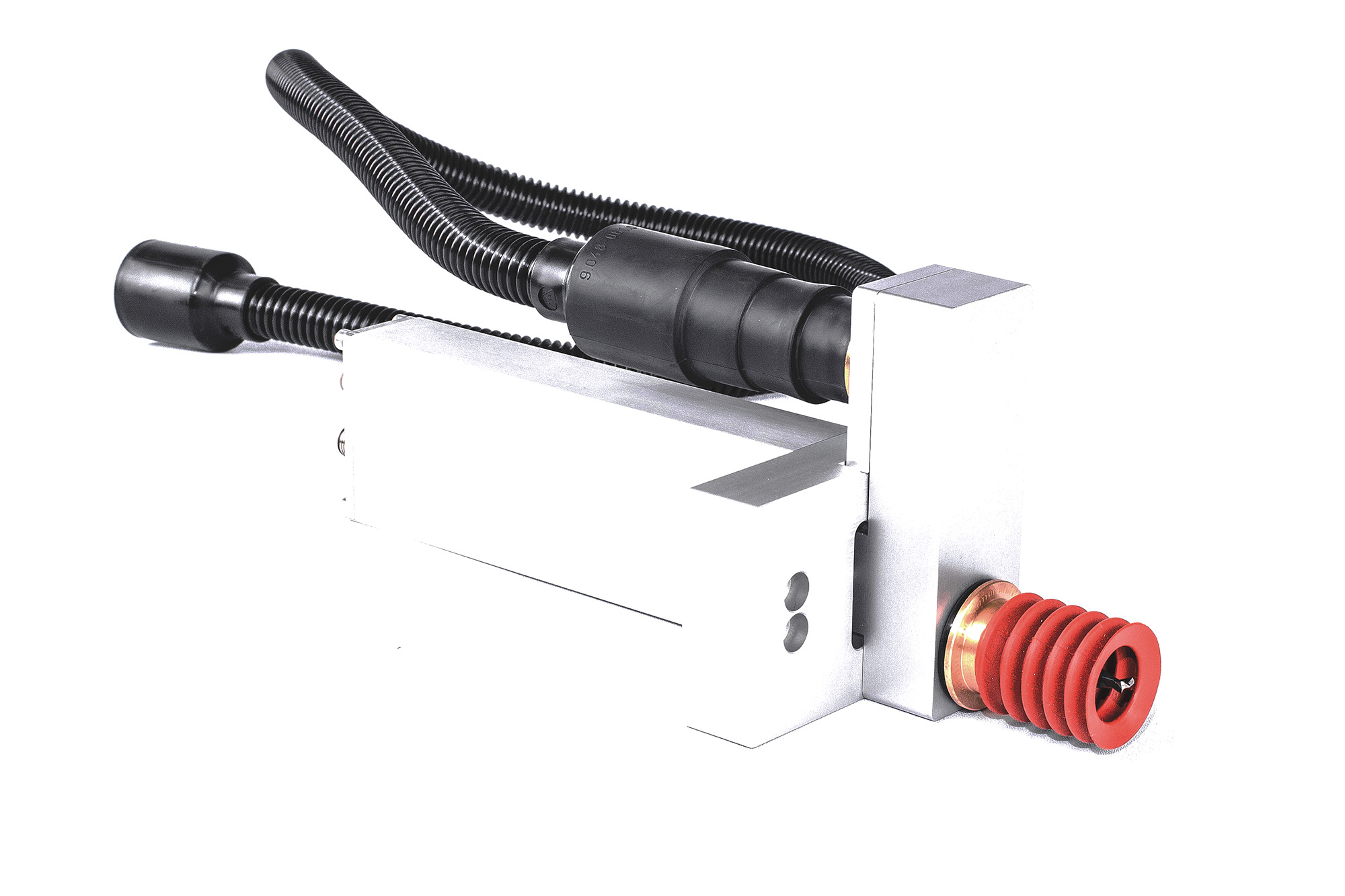

Extraction unit with vacuum bag

Both clean surfaces and drill holes without residual chips are main requirements for the extraction technology. Especially when machining carbon or composite materials, critical dust hazardous to health can be generated. The ToolDrives extraction technology extracts directly at the process, where the chips occur, due to the highly adaptable, flexible bellows.

Further views

Product highlights

  1. No residual chips

    The innovative and integrated suction directly on the tool spindle ensures a clean working environment and clean drill holes without residual chips.

  2. Adaptable

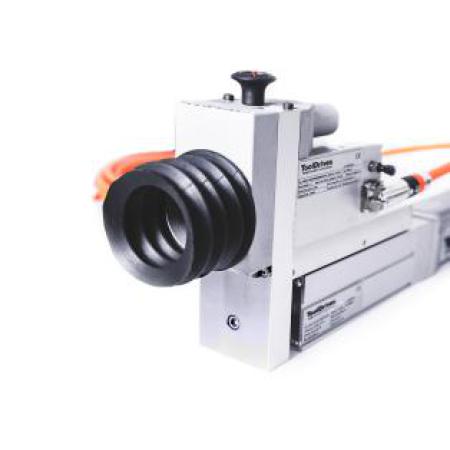

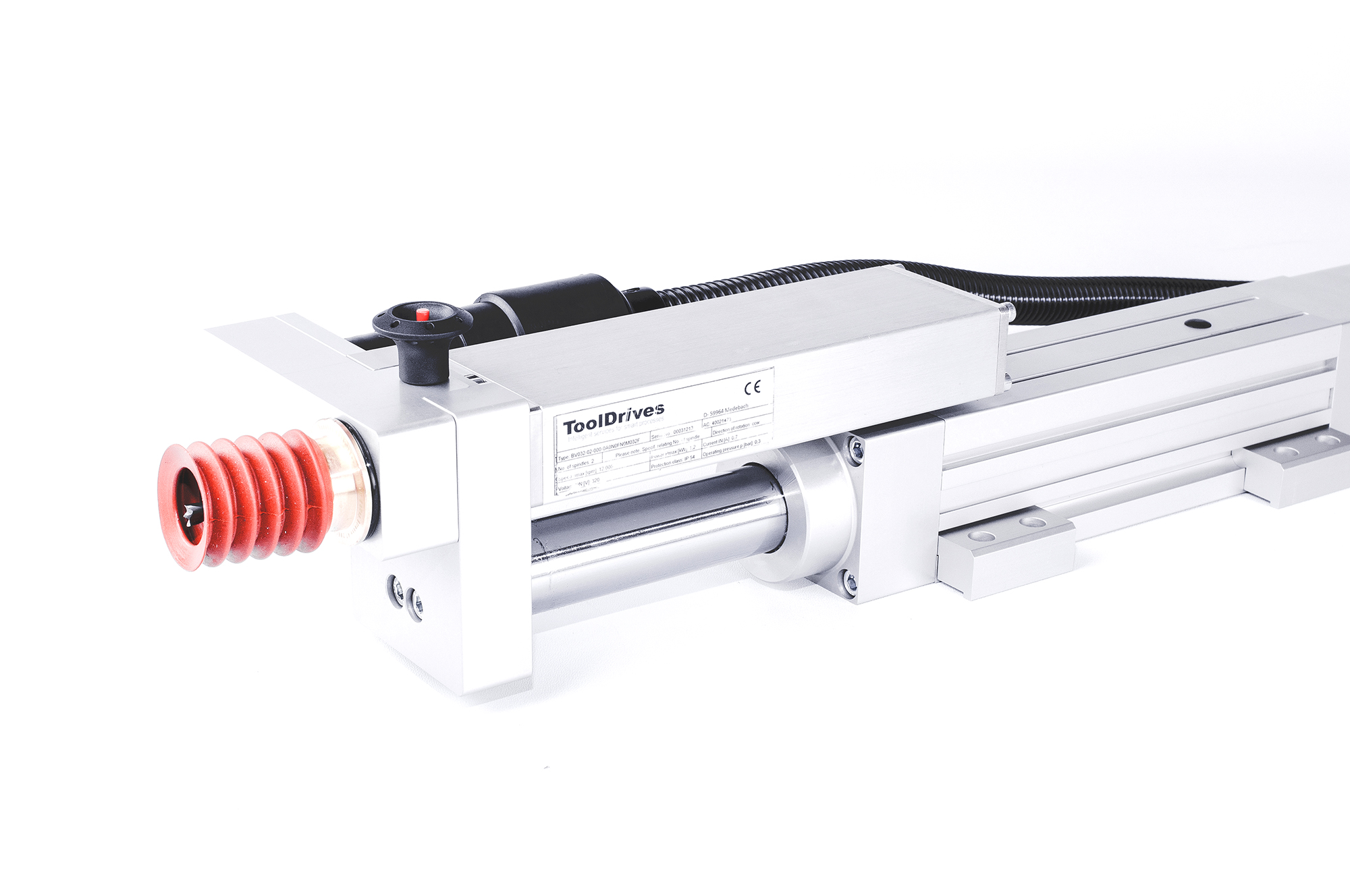

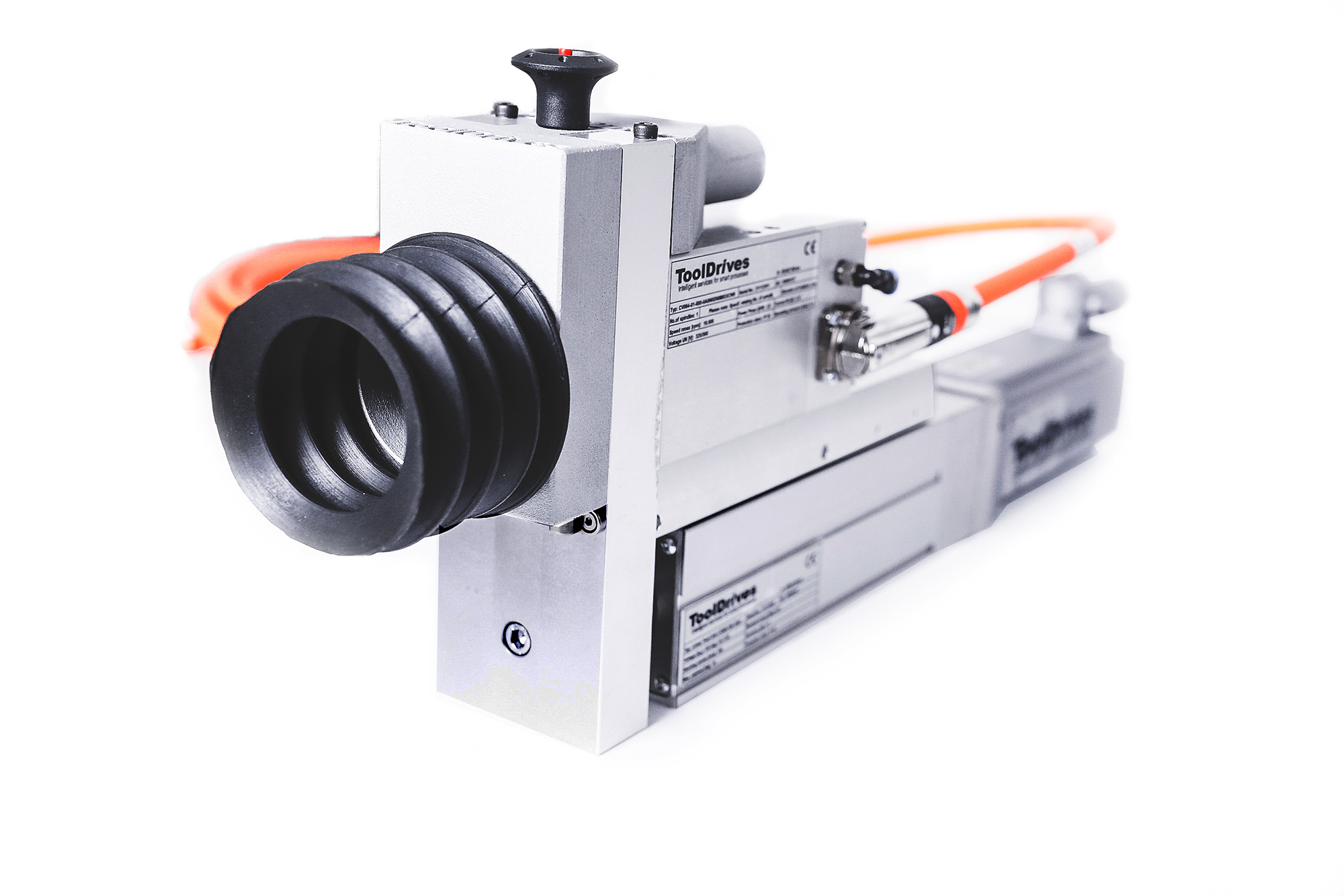

    The flexible vacuum bag on the ToolDrives drilling spindle adapts to the interfering contours of the workpiece to be machined and extracts the chips cleanly and efficiently.

  3. Quick change

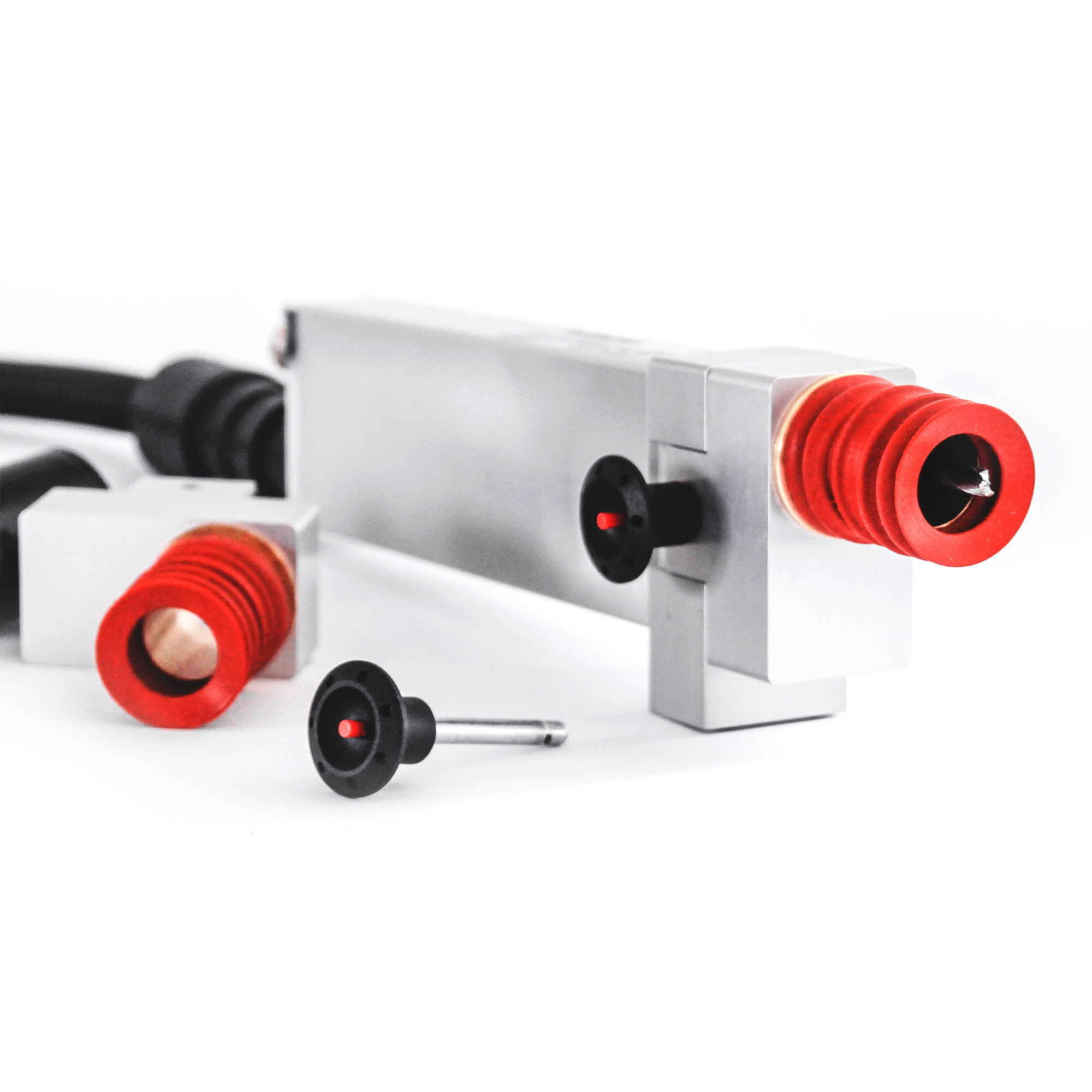

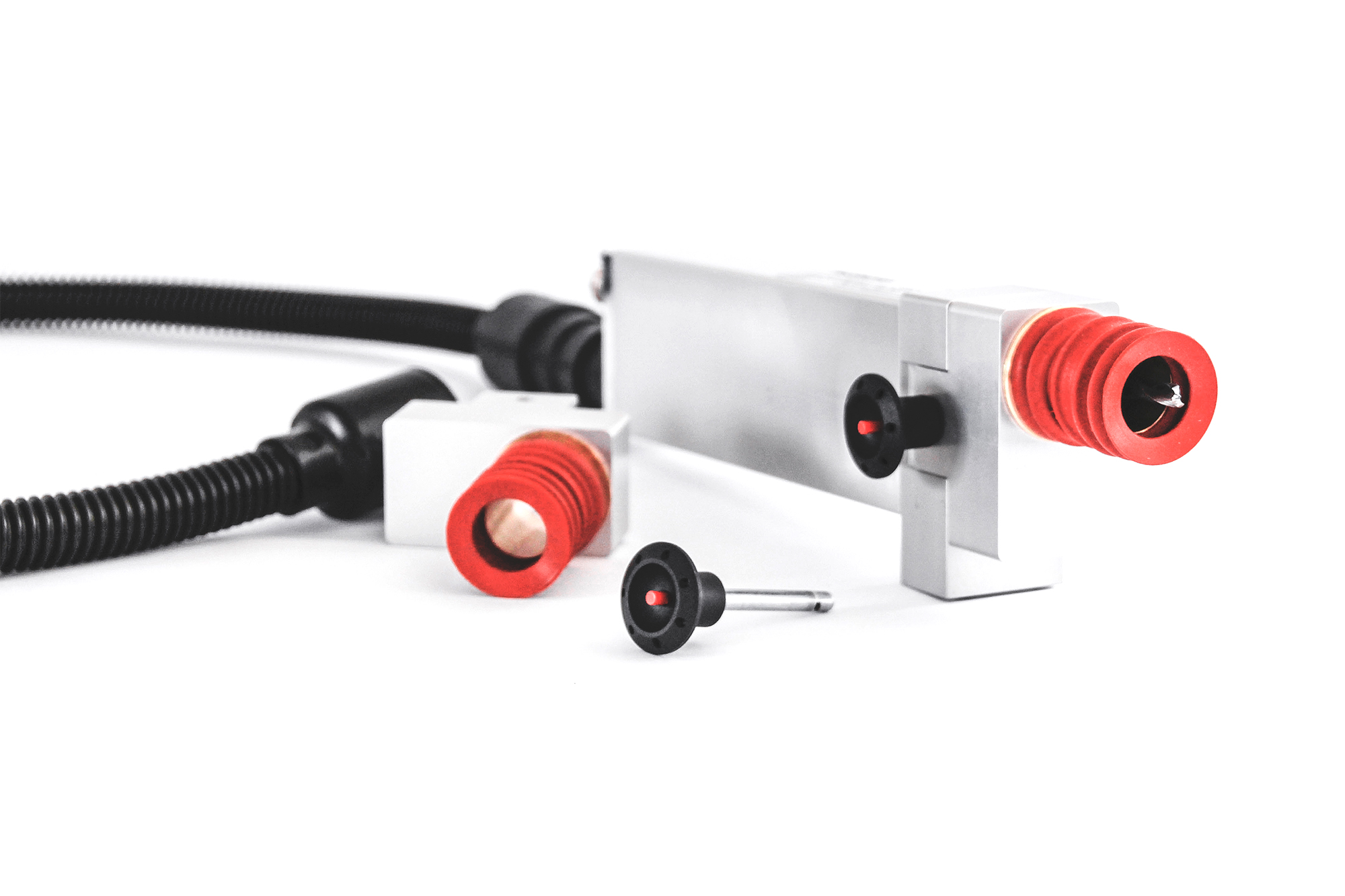

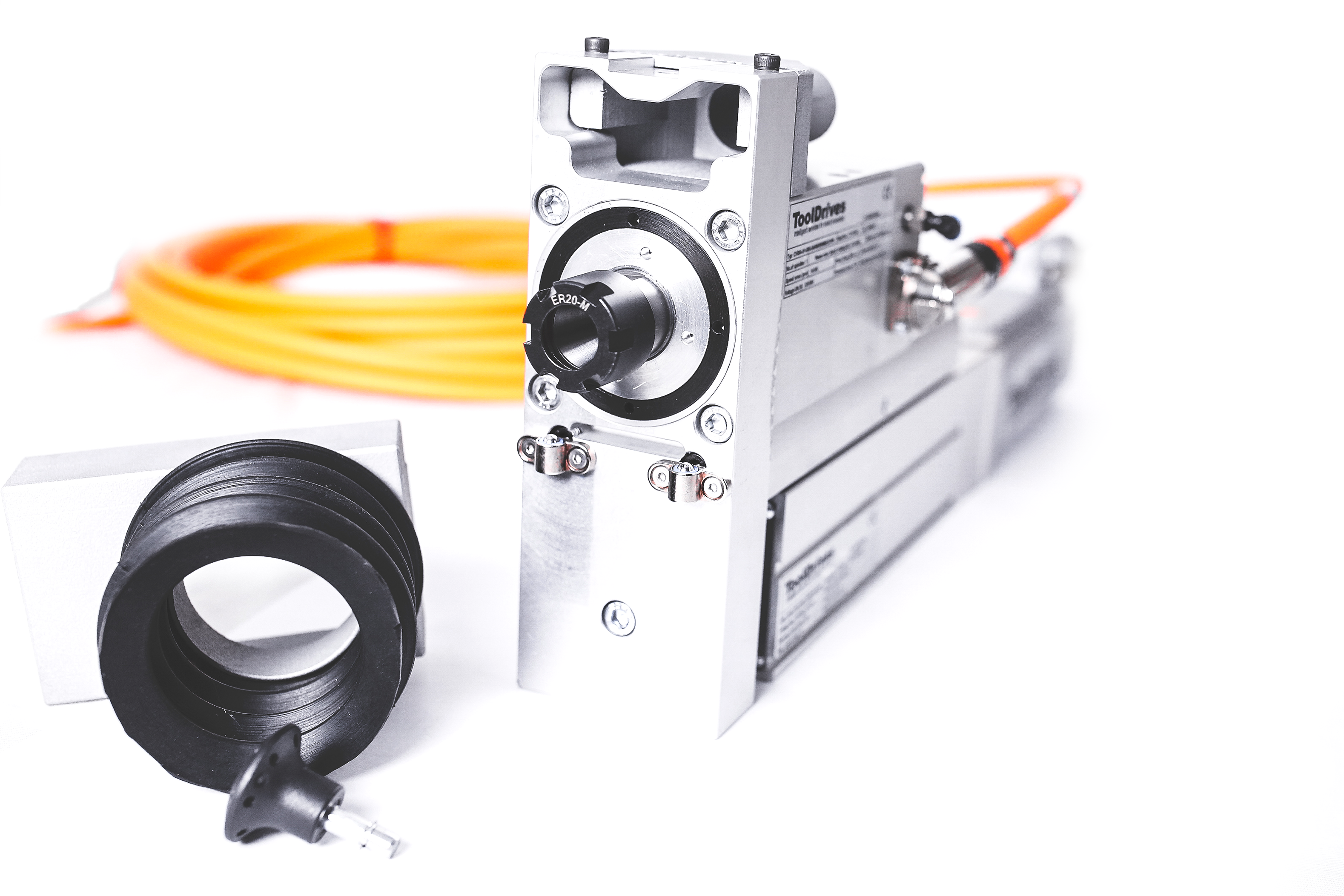

    The two-part, centered suction unit is simply removed by removing the locating pin downwards. This allows a very quick tool change.

Product images

Our products in use


Further product details can be found in our associated data sheets.
