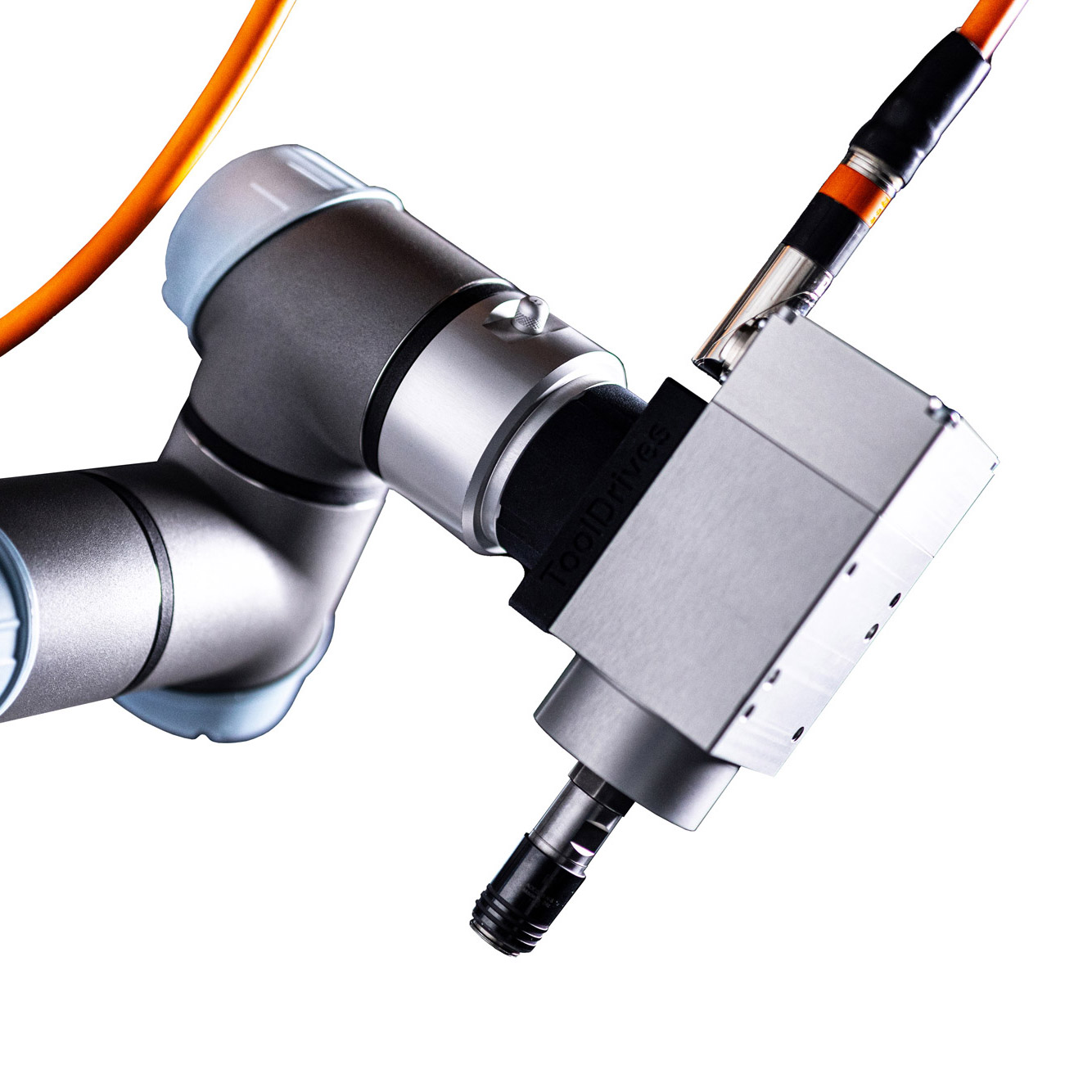

Compact Line Module an Cobot

Processing unit

Compact Line Module

The machining modules of the Compact Line are extremely robust and have an enormous power density. Applications include drilling, milling, deburring, thread cutting, polishing and sawing, depending on the tool holder design. The high concentricity, the size and the robust bearing make the Compact Module a real all-rounder.

Further views

Product highlights

  1. More flexible

    Greatest possible flexibility due to variable design of the cable outlet, various screw-on options and a choice of a saw or ER20 mount.

  2. Compact

    With an overall length of less than 170mm, the Compact Modules are ideally suited for the insertion of horizontal holes.

  3. More powerful

    The extremely powerful synchronous motor with >2 kW enables the application in demanding areas such as grooving and cup band drilling.

Product images

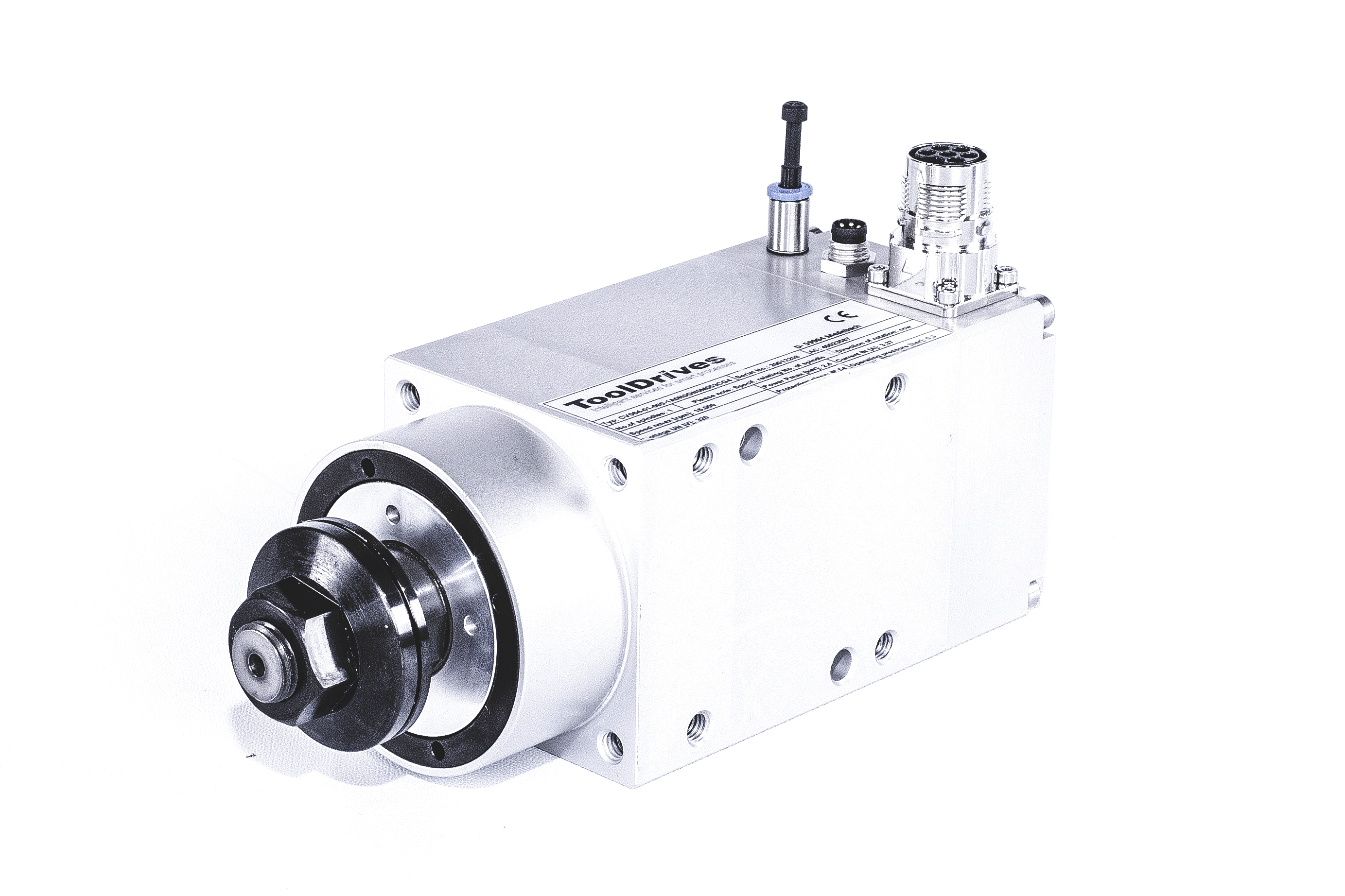

Compact Line Modul zum Bohren, Fräsen, Sägen und Entgraten

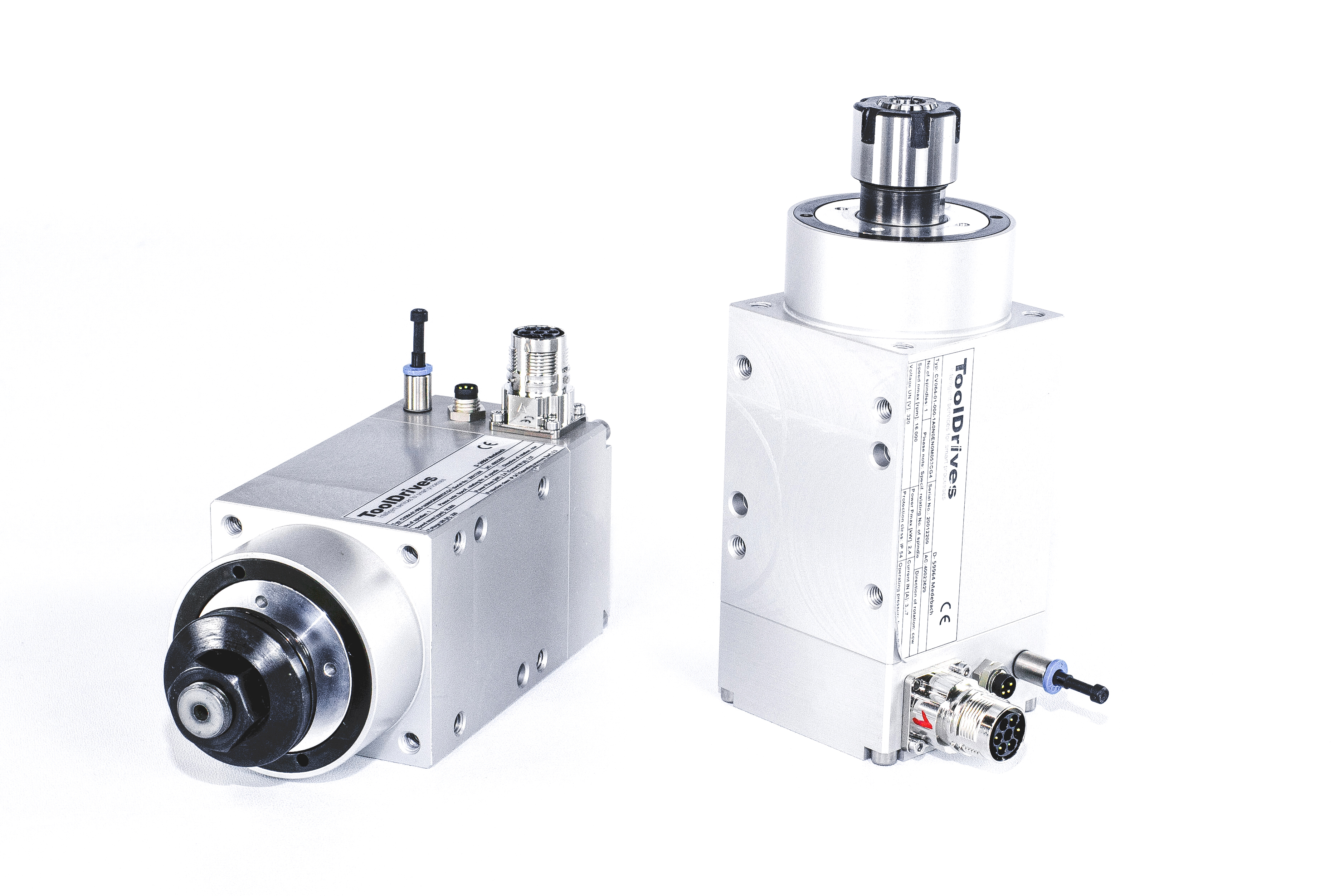

Compact Line Modul zum Bohren, Fräsen, Sägen und Entgraten

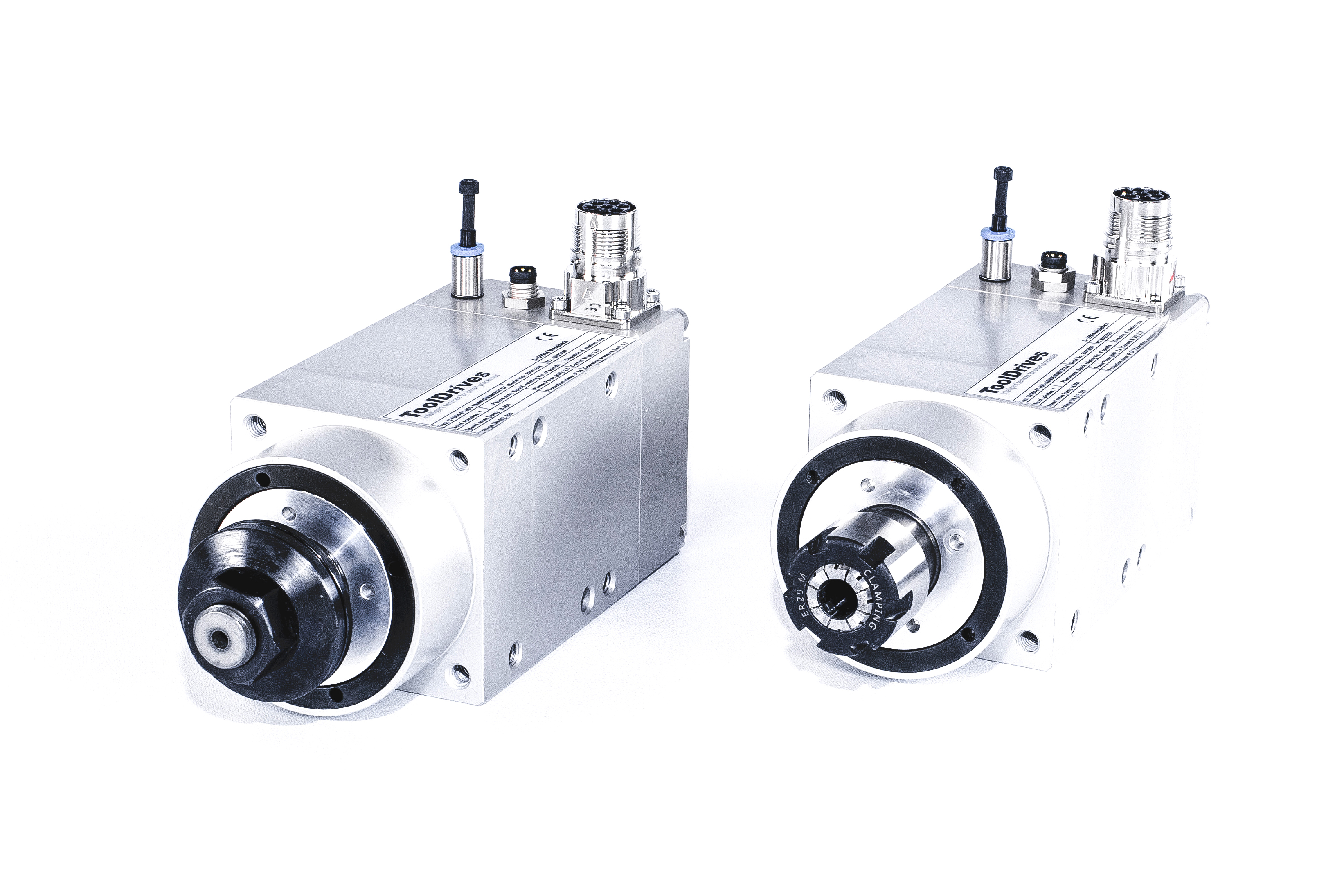

Compact Line Modul zum Bohren, Fräsen, Sägen und Entgraten

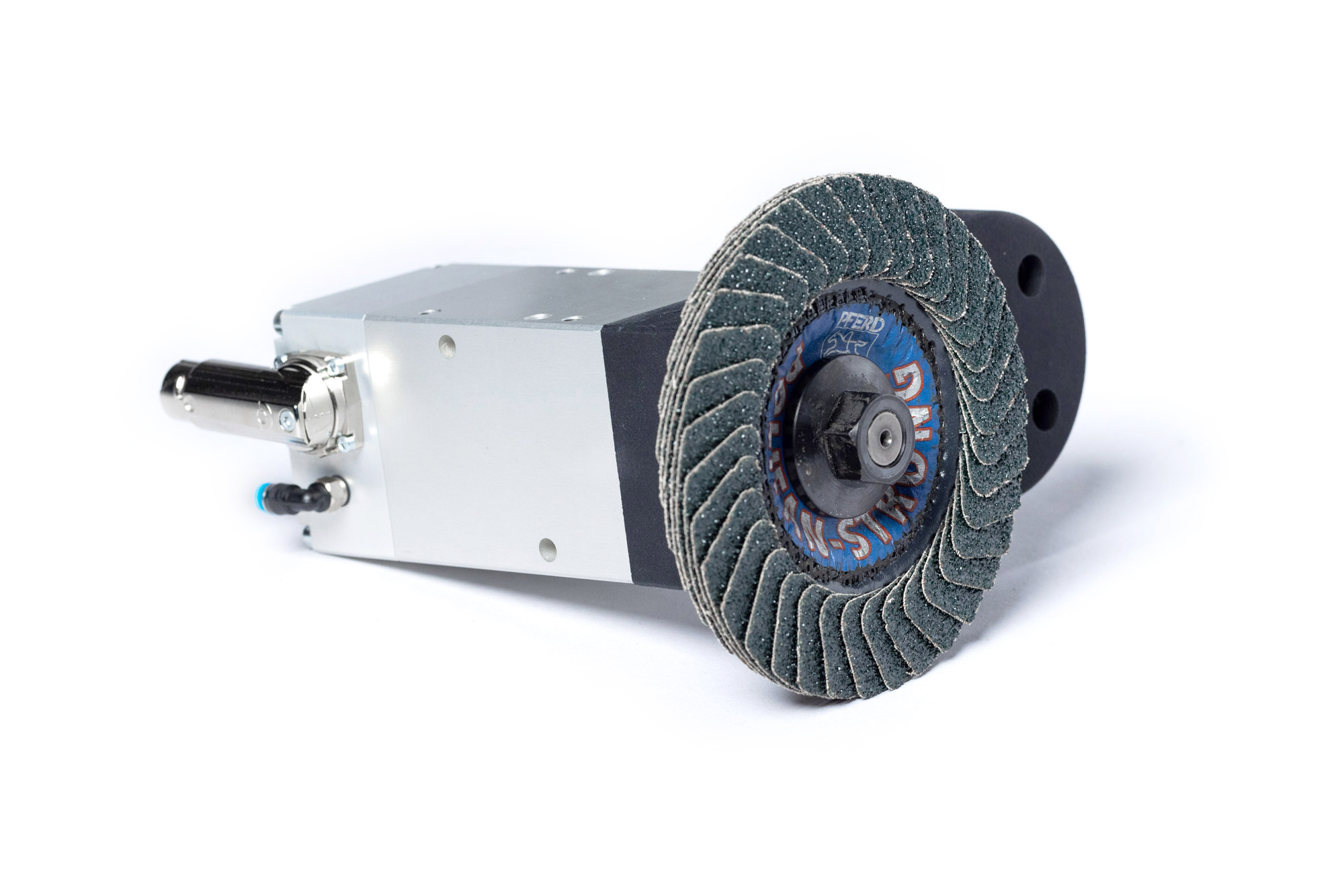

Compact Line Module mit Sägeblatt
Compact Line Module mit Sägeblatt

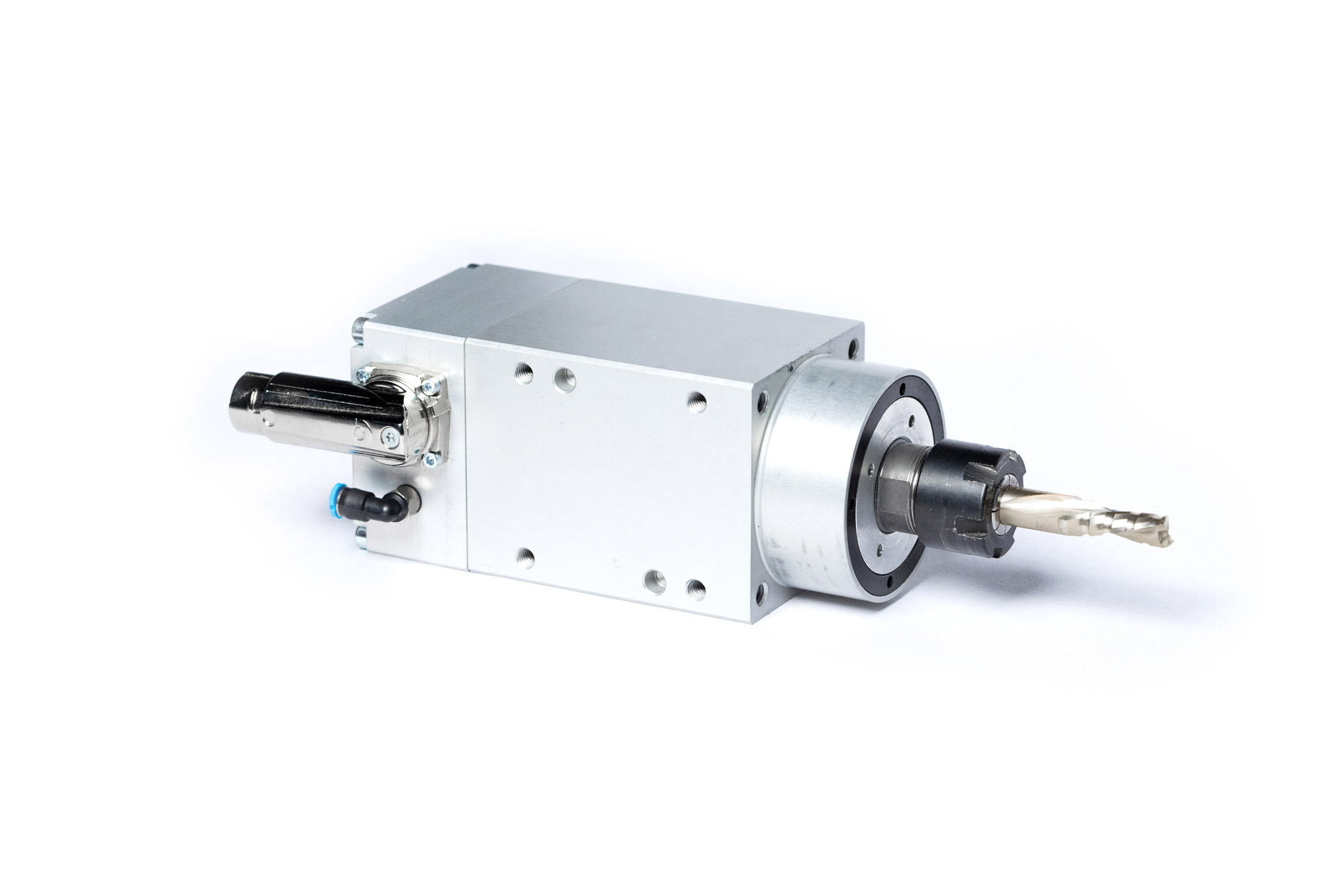

Compact Line Module

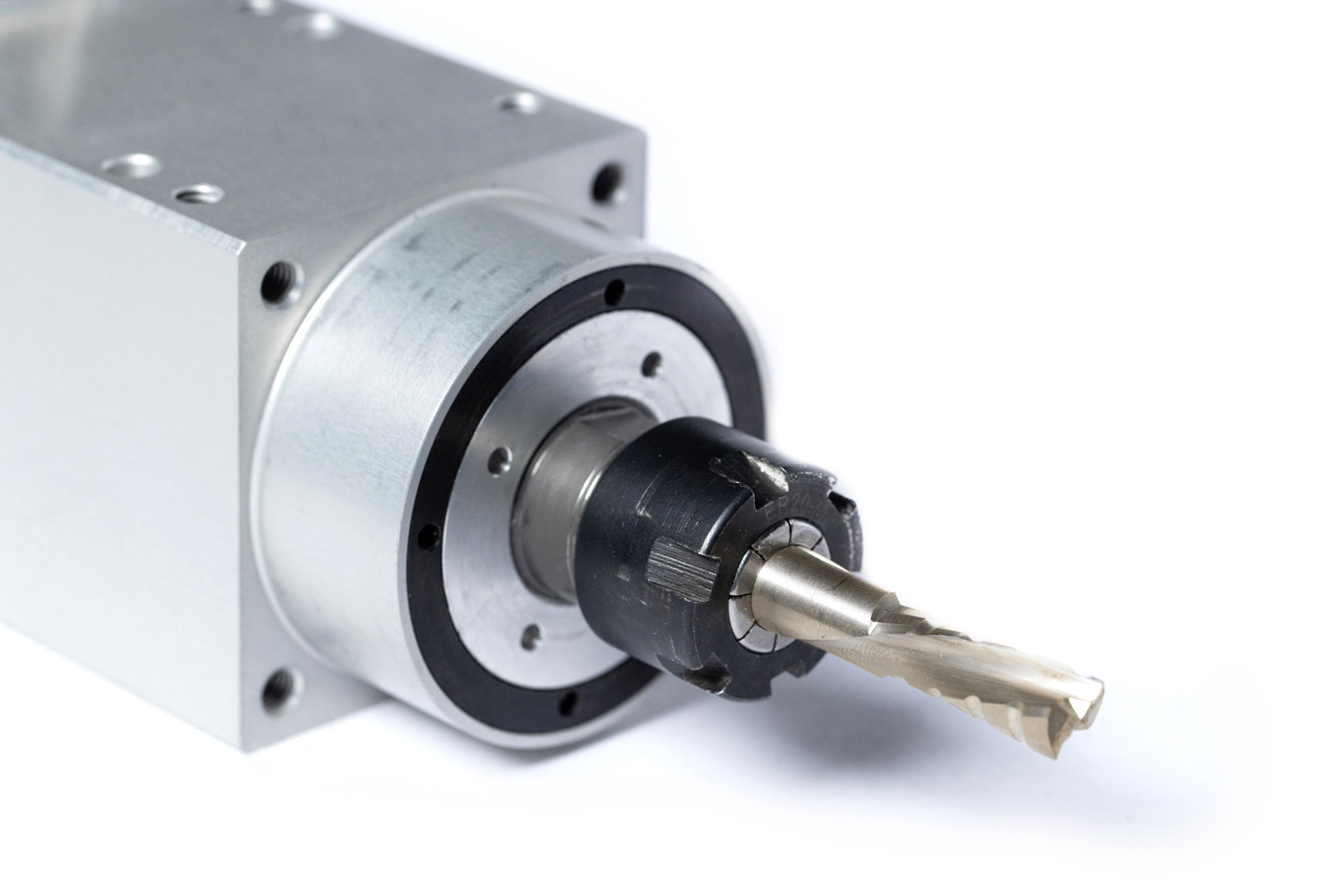

Bohrungen mit dem Compact Line Module
freisteller von Setting UR-Cobot + Compact Line Module

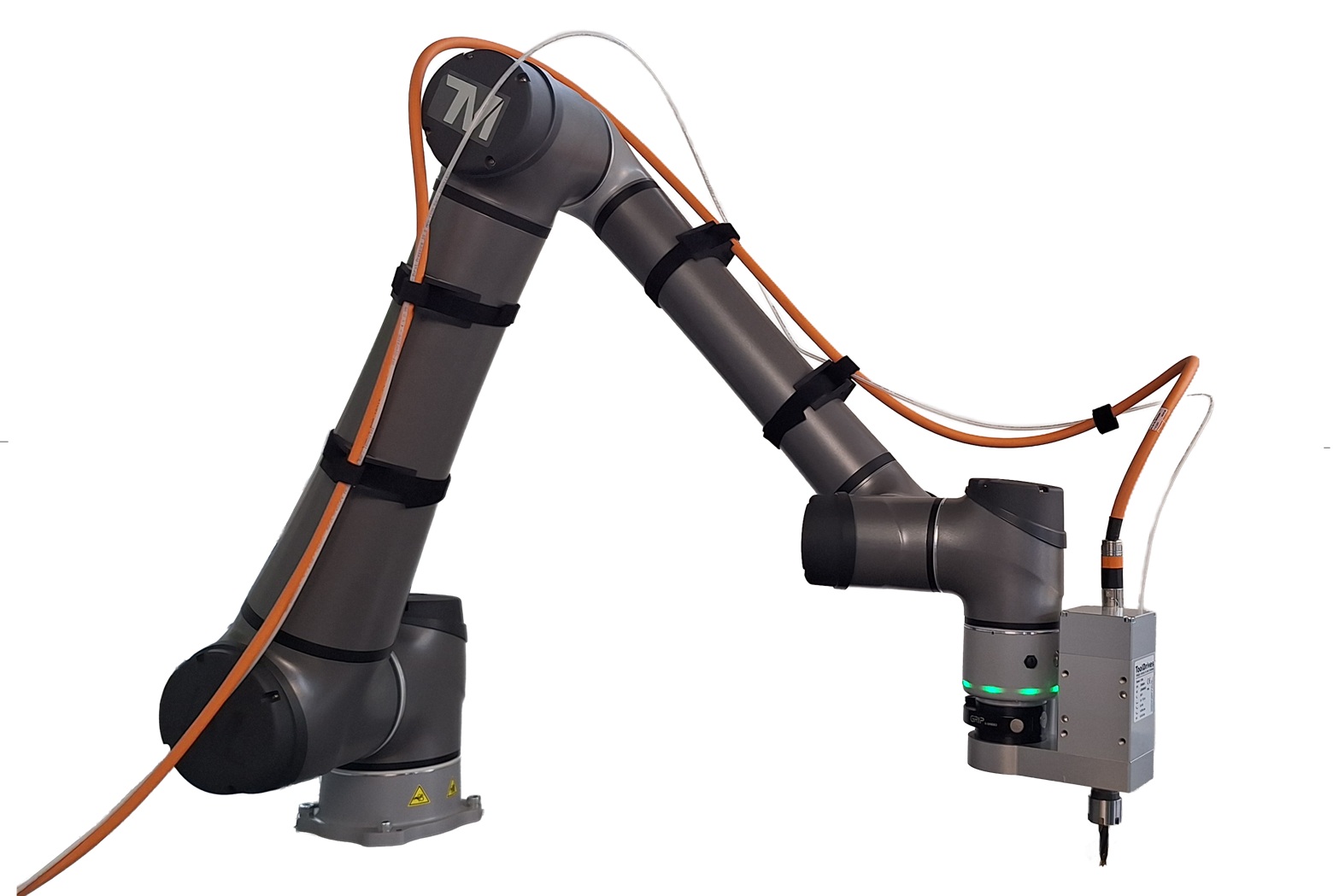

The Compact Line Module in use on the Cobot

Discover the efficient method of drilling without suction on the Universal Robot. In this video we show you how to perform precise drilling operations with the Universal Robot.

Universal Robots + Zertifizierung

UR+ certified

The Compact Line Module is now UR+ certified, which means it can be seamlessly integrated with Universal Robots collaborative robots. The certification ensures easy integration and direct control via the PolyScope user interface.

To Universal Robots

Downloads

Further product details can be found in our associated data sheets.
